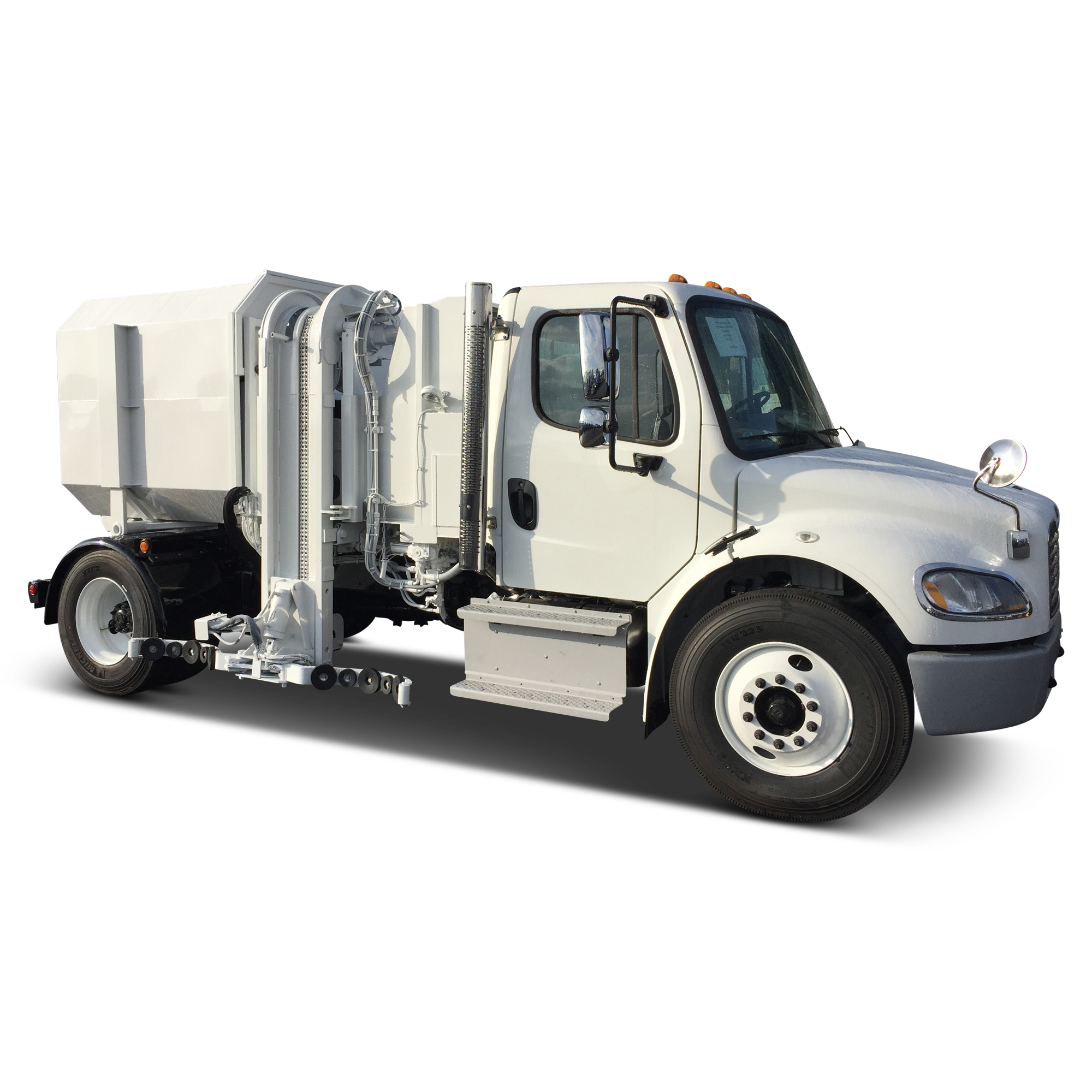

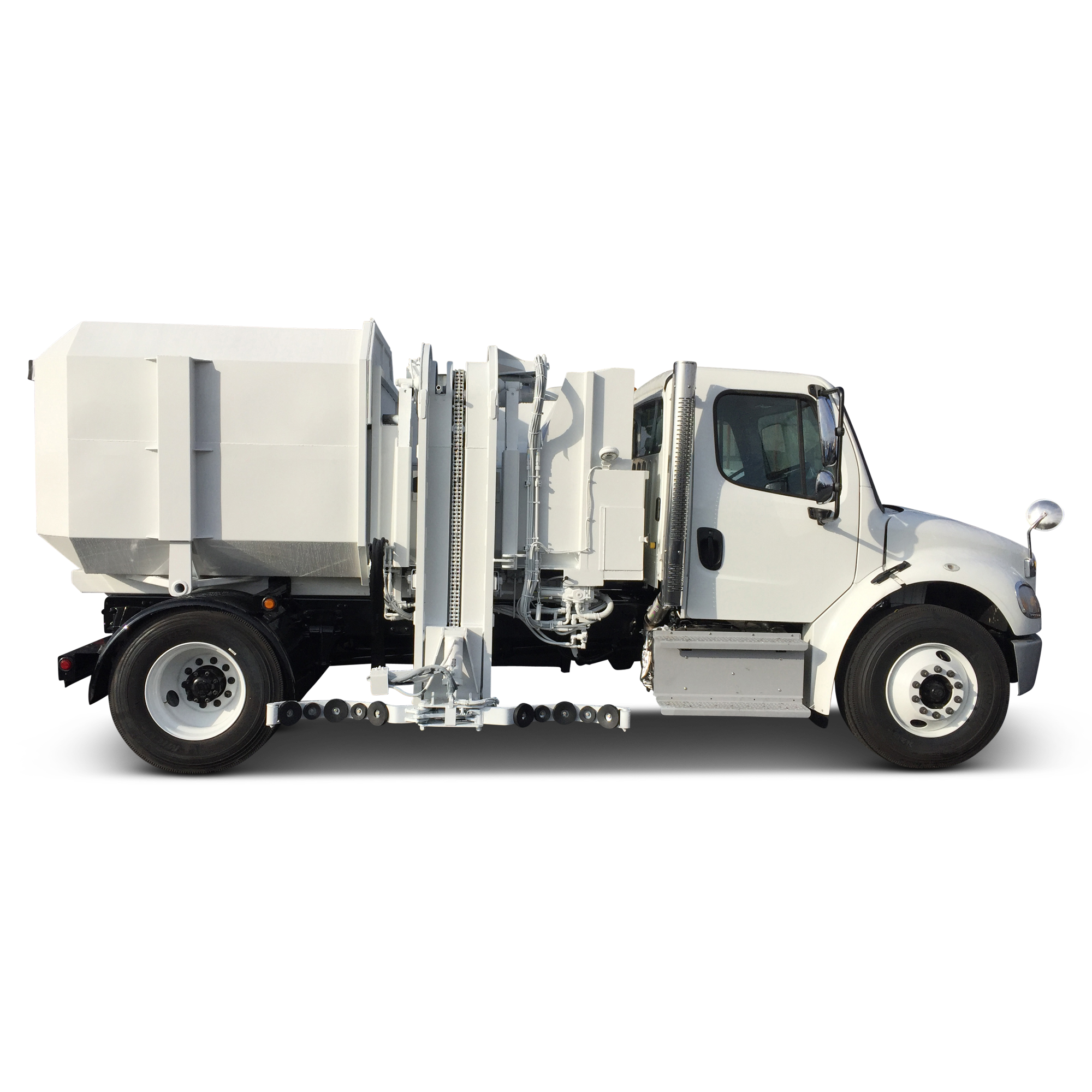

AMOCSL
Side Loader
Standard Specifications
- Body Construction
12 Gauge high tensile steel
- Hopper Construction
- 3/4 Cubic yard loading hopper with hydraulic actuated packer blade and crusher panel
- Floor – 1/4” T-1 “Ar” steel
- Sides – 3/16” T-1 “Ar” steel
- Floor Guides – 3” X 3” with 3/16” wear plate
- Side Guides – 4” Mc4 X 13.8 channel
- Hopper Dimensions – 33” long X 71 ½” wide X 13” deep
- Dump Configuration
- Hoist
- Push Out
- Frame Type
- Drop Frame
- Straight Frame
- Body Construction
- 12 Gauge high tensile steel
- Hydraulic Read Door
- Hydraulic actuated single rear steel convex door
- Door sheets - 14 gauge high tensile steel with plywood liner
- Packer Follower
- Attached to top of packer blade to prevent refuse from collecting in front area of body
- Follower cover - 3/8” high tensile steel
- Attached to top of packer blade to prevent refuse from collecting in front area of body
- Packer Blade
- Packer front – 1/2” mild steel
- Packer sides – 1/2” mild steel
- Penetration into body – 6”
- Packer blade dimension – 71” wide X 11” high
- Packer top cover
- Packer hinged cover
- Hopper Doors
- Curb side and street side
- Loading Steps
- Curb side and street side
- Hoses and Fittings
- HD double wire braided parker 100r2 SAE hose with Jic Fittings
- Zinc dichromate seamless steel tubing
- Reservoir
- Capacity - 60 gallon
- Breather cap
- Shut off valve
- Tank drain plug
- 20 Micron intank return line filter with 20 psi
- Bypass valve
- 150 Micron reusable suction filter
- Visual oil level and temperature gague.
- Hydraulic Oil
- Anti-wear, corrosion, oxidation and foam inhibitorsIso viscosity grade – 46
- Api gravity – 31
- Viscosity – 220 @ 100 degrees F.
- Flash point – 430 degrees F.
- Hydraulic Controls
- Electric / air automatic packer controls for packer blade. All other levers operated on right side behind cab.
- Power Source
- Front mount pump
- Transmission mounted PTO/pump
- Packer Cylinders
- (2) Single stage, double acting
- Bore - 4”
- Stroke - 29 ¾”
- Rod - 2 ½” diameter chrome plated
- Crusher Panel Cylinder
- (1) Single stage, double acting
- Bore - 3”
- Stroke - 13 ¾”
- Rod - 1 ¼” diameter chrome plated
- Rear Door Cylinders
- (2) Single stage, double acting
- Bore – 2 ½”
- Stroke – 35”
- Rod – 1 ½” chrome
- Hoist Cylinders
- (2) Three stage telescopic, single acting
- All stages chrome
- Stroke: 63 ½”
- Lights
- Standard ICC lights and reflectors conforming to California state vehicle code. “Truck-Lite” tail, stop, back up and directional lights
- Mid-Body Turn Signal
- Directional lights mounted at mid-point of body
- Rear Door Liquid Catch
- Steel construction installed under rear door to prevent liquid spills
- Drop Frame
- Chassis frame modified for low pitch-in height
- Fuly Enclosed Hopper
- Open wire mesh or solid steel with full opening doors both sides
Options
- Options - Lighting
- Ecco strobe on rear door
- 4 Additional rear flashing lights
- 2 Rear mounted spot lights
- 1 Additional rear/center mounted brake light
- Options - Safety
- Fire extinguisher
- Triangle road kit
- Spill kit
- Options - Camera System
- 1 Camera rear
- 2 Camera rear / hopper
- 3 Camera rear / hopper / left cab
- 5 Camera rear / hopper / left cab / L-R alley
Minimum Steel Specifications
- Mild Steel
- Tensile strength – 56,000 psi
- Tensile yield – 36,000 psi
- High Tensile Steel
Tensile strength – 80,000 psi
Tensile yield – 55,000 psi - T-1 “AR” Steel
- Tensile strength – 150,000 psi
- Tensile yield – 100,000 psi
- Brinell – 363
- Estimated Body Weight
15,500 lbs
(Options may affect total body weight)
Lighter bodies available with material modifications
