HX450ASL

Automated Side Loader (AMHOASLTPO-16/19/21) with push out dump system

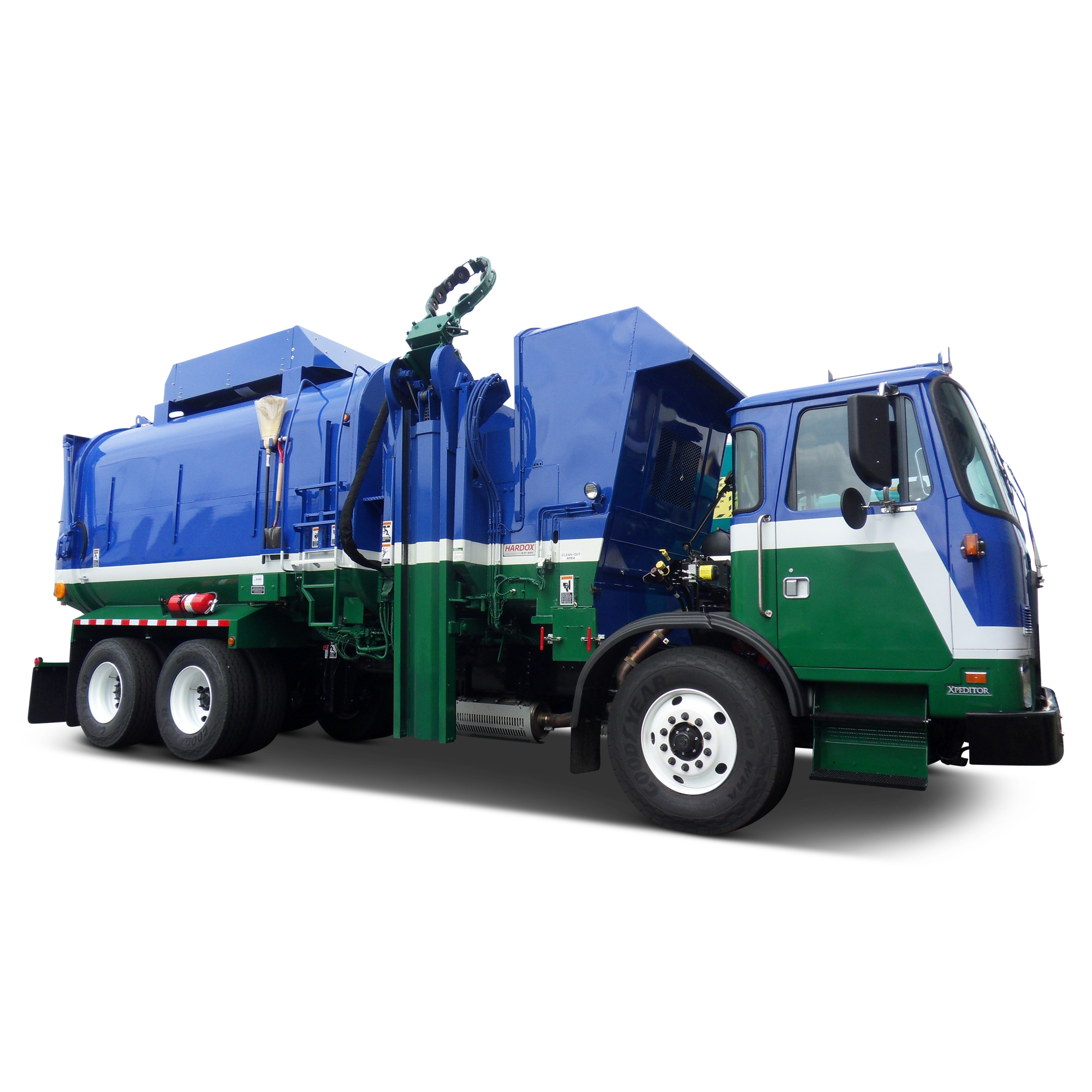

Amrep’s HX450 Automated Side Loader is available in 30 to 36 cubic yard body sizes with full push out or hoist to dump ejection. Since the automated arm’s mounting position is integral with the body, it provides the best weight distribution and highest payload. The arm can also dump and return the container from any position without retracting the lift arm. Because the container travels vertically up the arm until reaching the hopper, spillage is minimized.

Standard Specifications
  • Body Construction
    • No radius
    • No retract to dump
    • Extension: 109“
    • Extension dump range: 0” - 109”
    • 8 - 10 Second dump cycle
    • Clamp container capacity: 30/60/90 and 300 gal
    • Self leveling clamp system with no “Kick Out”
    • 800 - 1200 Homes per day
    • Built in can counter
    • Auto arm lock
  • Packing System
    • Patented dual blade packing/ejection system
    • Selectable pack cycles
    • Follow plate to prevent spillage behind blade
  • Electrical System
    • Computerized packing system
    • Packing function display
    • Harnessed wiring
    • Weather resistant quick connectors
  • Body Construction
    • Body shell - 1/8” Hardox 450
  • Hopper Construction
    • Hopper sides - 4mm Hardox 450
    • Hopper floor - 3/16” mild steel (beneath dump blade)
    • Dump blade (useable floor) - 1/4“ T-1
  • Hydraulic Rear Door
    • Hydraulic actuated single rear
    • Steel convex door
    • Door sheets - 1/8” Hardox 450
  • Cab Canopy
    • Side and top - 14 gauge mild steel
  • Packer Follower
    • Attached to top of packer blade to prevent refuse from collecting in front area of body
    • Follower cover - 3/8” high tensile steel
  • Packer Blades
    • Patented dual blade design with both blades on automatic cycle
    • The dump blade (secondary floor) is 15-3/8”
    • High X 70” wide 1/4“ T-1
    • The top blade uses 2 single stage cylinders
    • Cross mounted 5.25” O.D. the lower eject blade uses 1-three stage telescopic cylinder to eject the load
    • Packer face plate - 1/4” T-1 steel
    • Packer sides - 3/8” T-1 steel
    • Packer width - 71”
    • Packer height - total of 36”
    • Packer guides - 4 on top of blade, 2 on bottom
    • Blade with Hardox wear strips - Hardox 500
  • Ladder
    • Right side of body to provide access to hopper with PTO lockout when in use
  • Patented Automated Loading Mechanism
    • Ramp with carriage powered by hydraulic motor self leveling clamp mechanism
  • Reach
    • 109” Maximum
  • Adaptability
    • 30/60/90/100 gallon fully automated containers on standard grabber round or rectangular
    • Containers may be dumped and returned from arm position
    • 300 Gallon ”grabber” and hopper available
  • Hoses and Fittings
    • HD double wire braided parker 100r2 SAE hose with jic fittings
    • Zinc dichromate seamless steel tubing
  • Reservoir
    • 60 Gallon capacity with breather cap shut off valve and tank drain plug
    • A 20-Micron return line filter cartridge with a 20 PSI bypass valve
    • Vertical baffles, 150-Micron re-usable suction filter
  • Hydraulic Controls
    • Air and electric operated controls mounted in cab to the right and forward of operator and to the left and forward of the operator
    • Electric/Air auto-pack controls for packer blade
  • Control Valve
    • Commercial A-35 with built in relief valve
  • Power Source
    • RPM or work at idle
    • Front mount double pump or trans P.T.O.
    • Gear or vane pump system
  • Packer Cylinders
    • (2) Single stage, double acting chrome
    • Bore – 4-¾”
    • Stroke – 57”
    • Rod - 2-1/2” chrome
  • Eject Cylinder
    • (1) – three stage telescopic, double acting, all stages chromed
    • 1st Stage (pack) – 5-½”ID
    • 2nd Stage (eject) – 4-½”ID
    • 3rd Stage (eject) – 3-½” Bore
    • Stroke – 162-¾”
  • Rear Door Cylinders
    • (2) Single stage, double acting
    • Bore – 2-½”
    • Stroke – 35”
    • Rod – 1-½” chrome
  • Lights
    • Standard ICC lights and reflectors conforming to California state vehicle code. “Truck-Lite”
    • Tail, stop, back up and directional lights
  • Mid Body Turn Signal
    • Directional lights mounted at mid-point of body
  • Rear Door Liquid Catch
    • Steel construction installed under rear door to prevent liquid spill
  • Clean Out Door
    • Two doors at front of body
  • Hardox 450 Specifications
    • Tensile strength - 180,000 psi
    • Tensile yield - 145,000
    • Brinell - 450
  • Estimated Body Weight
    • 15,500 lbs (options may affect total body weight)
    • Lighter bodies available with material modifications
Options
  • Options - Safety
    • Fire extinguisher
    • Triangle road kit
    • Spill kit
  • Options - Camera Systems
    • 1 Camera rear
    • 2 Camera rear / hopper
    • 3 Camera rear / hopper / left cab
    • 5 Camera rear / hopper / left cab / L-R alley
